Maintenance kit

PRICE

From $92 to $1160 USD

FEATURES

To ensure the longevity and proper functioning of the PSS seal, PYI supplies PSS service kits to meet the requirements of the preventive maintenance plan. As with any rubber/silicone hose below the waterline, PSS bellows should be inspected periodically for signs of wear, age or chemical deterioration. PYI recommends replacement of the bellows once every 6 years (For Type A seals) and 8-10 years (For Type B and PRO seals). During bellows replacement it is also recommended that the O-rings and set screws on the stainless steel rotor be replaced, as well as the clamps. PYI includes all necessary components and parts in its PSS maintenance kits.

ASK OR QUOTE HERE
By completing the form, one of our advisors will reply to you as soon as possible.
485 People watching this product now!
Category:
Description

Benefits:

All maintenance components included depending on your equipment.

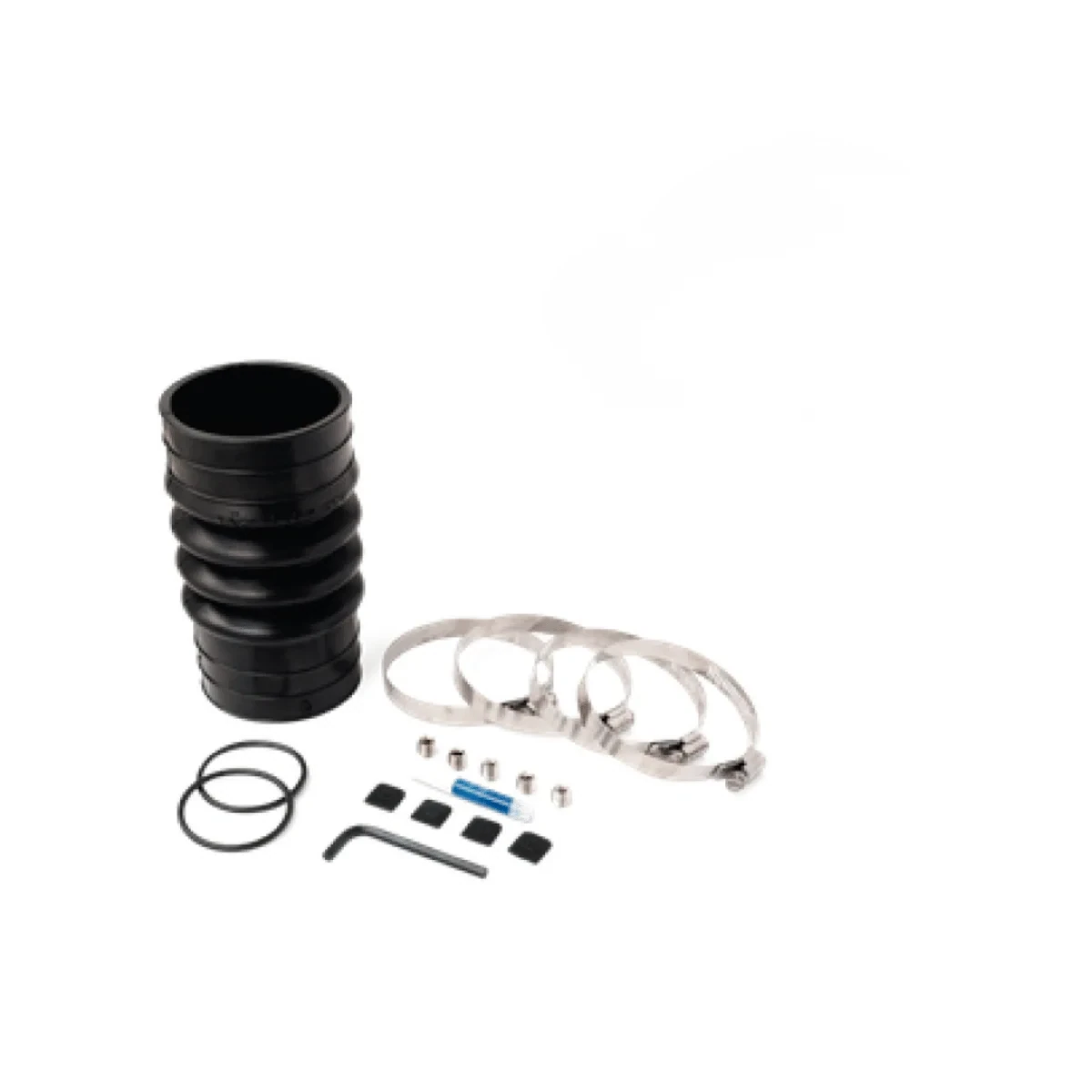

THE TYPE A SEAL MAINTENANCE KIT includes:

  • Bellows
  • Fastening screws
  • O-rings
  • Stainless Steel Hose Clamps
  • Jackets for clamp (Rubber coating at the ends of the washers)
  • Medium strength retainer compound
  • Key
  • Instructions

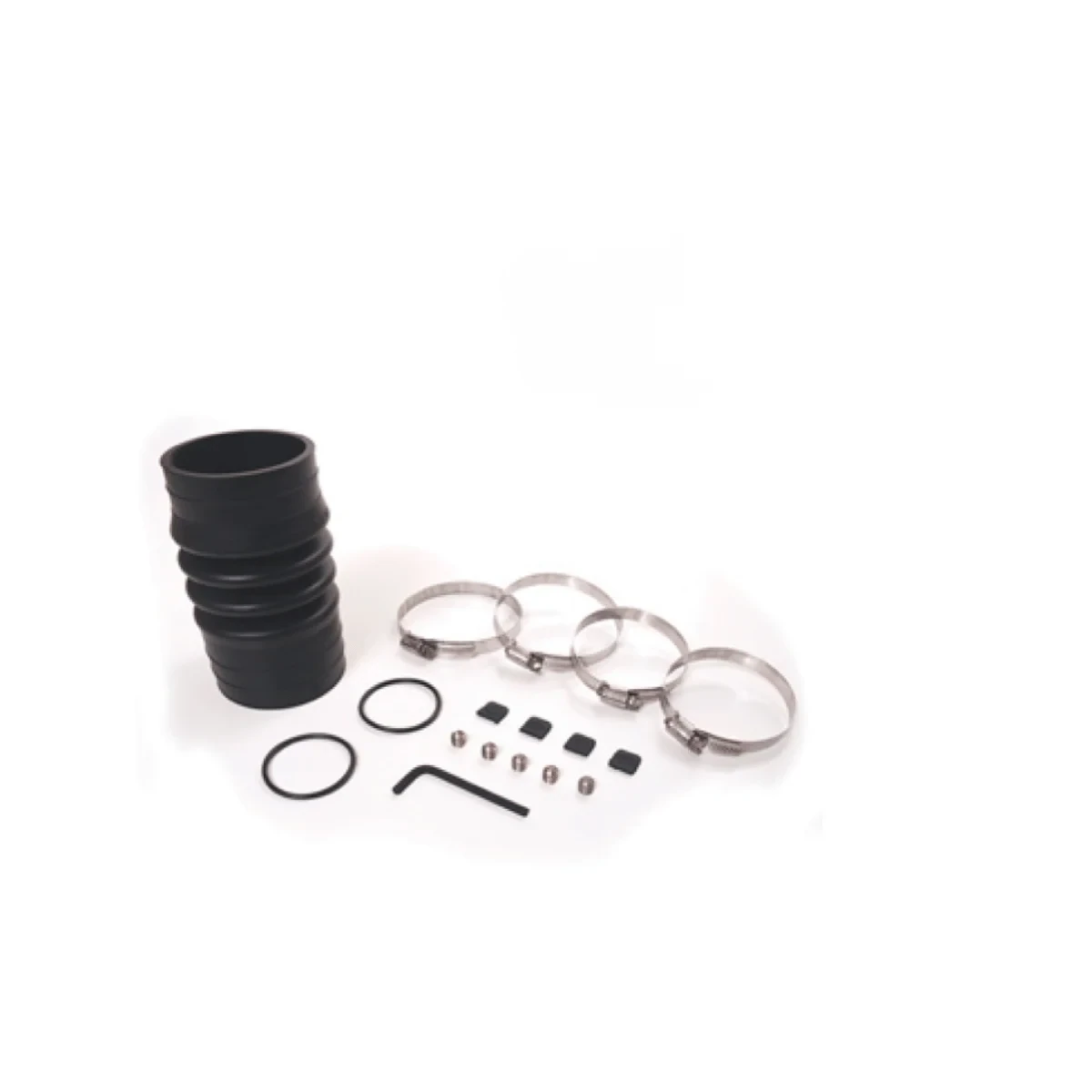

THE TYPE B & PRO SEAL MAINTENANCE KIT includes:

  • Silicone Bellows
  • Fastening screws
  • O-rings
  • Reinforcement rings (Standard for sizes 2¼” (60mm) to 3¾” (95mm) and optional for smaller
    sizes)
  • Stainless Steel 316 Hose Clamps
  • Jackets for clamp (Rubber coating at the ends of the washers)
  • Medium strength retainer compound
  • Key

Instructions

What makes this product special?

It includes all necessary components and parts in its PSS maintenance kits.

Related products

Quick view

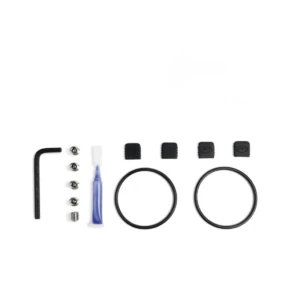

Dynamic Rotor O-Ring Kit

Read more
PRICE From $4.75 to $6.25 USD FEATURES Includes O-ring (2 units), fixing screws (5 units), Allen key, retaining compound, and clamp jackets (4 units)
Quick view

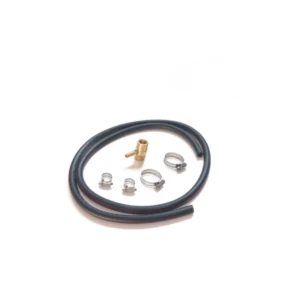

Adapter set T

Read more
PRICE From $51 to $56 USD. Specific dimensions, references, and prices according to the table. FEATURES: PYI offers Kits-T to help facilitate the installation of the PSS mechanical seal. These Kits-T allow the installer to derive a T from the sea water discharge line and supply water through a hose connector to the PSS mechanical seal.
Quick view

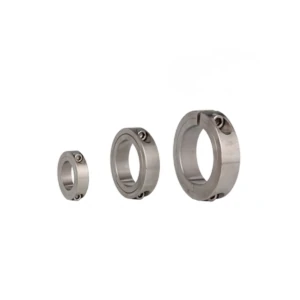

Retention collars for shafts

Read more
PRICE From $20 to $220 USD. FEATURES The Shaft Retention Collar (SRC) is designed to protect propeller shafts and rudders. It helps keep the shaft and rudder inside the boat in case of a coupling failure. Thanks to its simple design, the SRC can be easily installed with the shaft or rudder in place. Available to fit shafts from 1" to 3" or 25 to 80mm.
Quick view

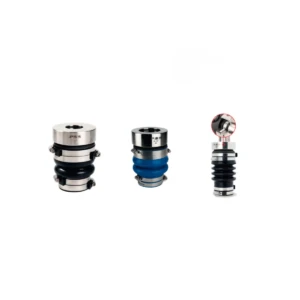

Rudder seal

Read more
PRICE From $300 to $605 USD FEATURES For commercial and recreational vessels
Quick view

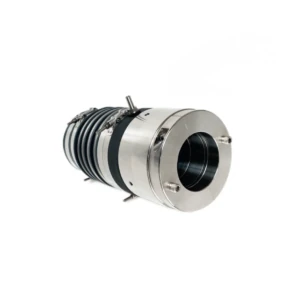

PSS type B

Read more
PRICE FROM $ 4600 TO $ 6650 USD CHARACTERISTICS FOR LARGE COMMERCIAL VESSELS, WITH SHAFTS FROM 4" (100 MM) TO 6" (150 MM) DIAMETER. COMMERCIALLY PROVEN FOR OVER 20 YEARS. THIS SEAL IS THE WORKHORSE OF THE COMMERCIAL MARINE INDUSTRY. STEEL REINFORCEMENT RINGS FOR CORRUGATED RUBBER BELLOWS. STANDARD FOR 4" (100 MM) DIAMETER SHAFTS OR LARGER. TYPE B SEALS USE 316S STAINLESS STEEL TYPE T CLAMPS WITH SCREW. Download file
Quick view

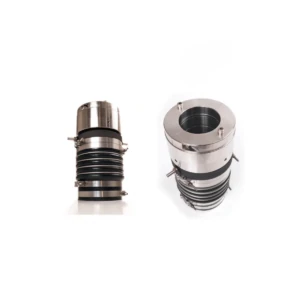

PSS Pro seal

Read more
PRICE From $ 425 to $ 3130 USD CHARACTERISTICS For commercial vessels, with shafts from 1 ¼" (32 mm) to 3- 3/4" (96 mm) diameter. Manufactured with the concept of application in workboats. Steel reinforcement rings for corrugated rubber bellows. Standard for 2 ¼" (60 mm) diameter shafts or larger. Pro seals use 316s stainless steel clamps with rolled ends and non-perforated bands.
Quick view

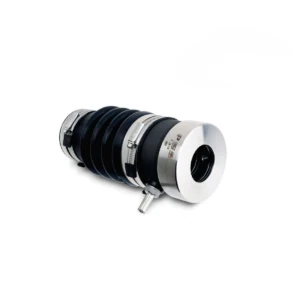

PSS Type A – Mechanical shaft seals
