Products

#1 Mechanical Shaft Seal for over 30 years on the world market

PSS SHAFT SEALS

Passion for performance

PSS SHAFT SEALS is recognized as the highest quality and number 1 marine mechanical seal in the world. It requires low adjustment and low maintenance.

Discover our competitive Shaft Seals and accessories pricing!

Products

Keep your yacht in perfect condition! Get a quote now for our maintenance services and spare parts.

Quick view

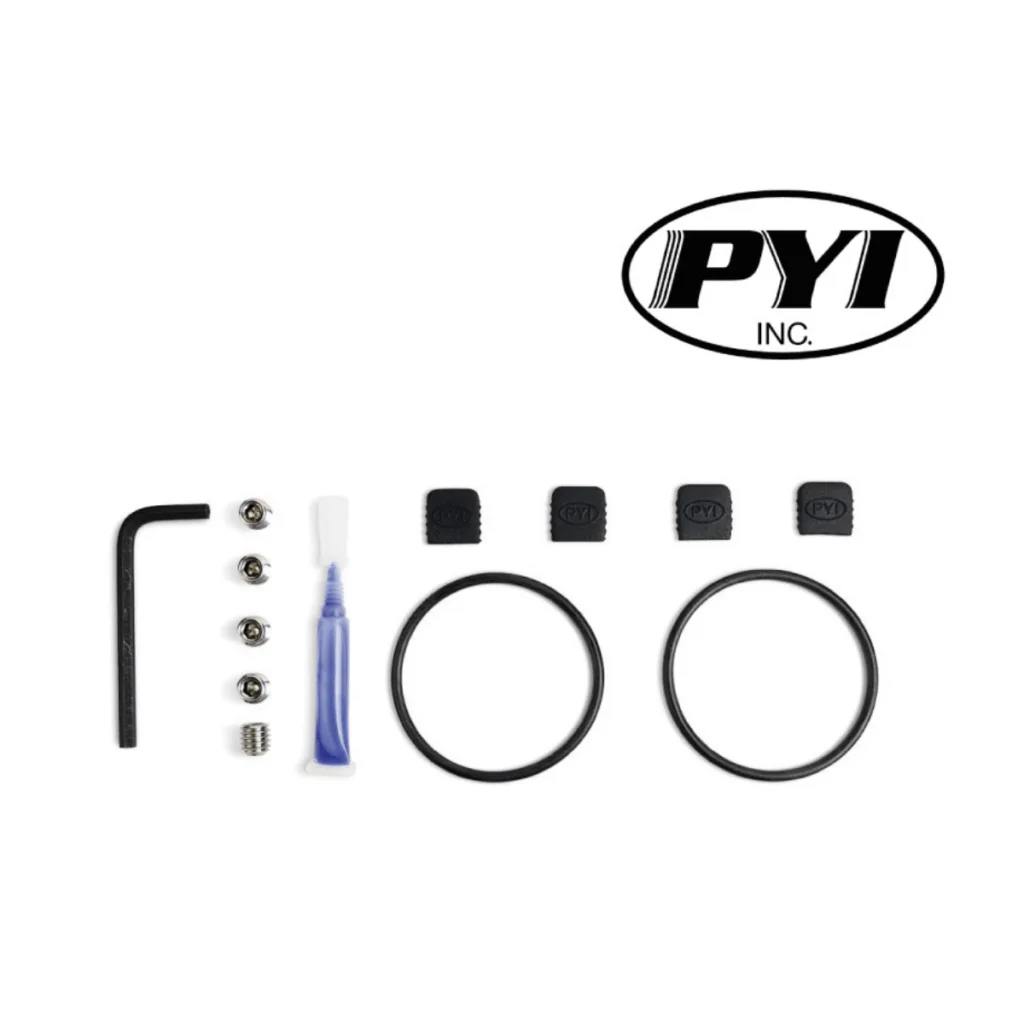

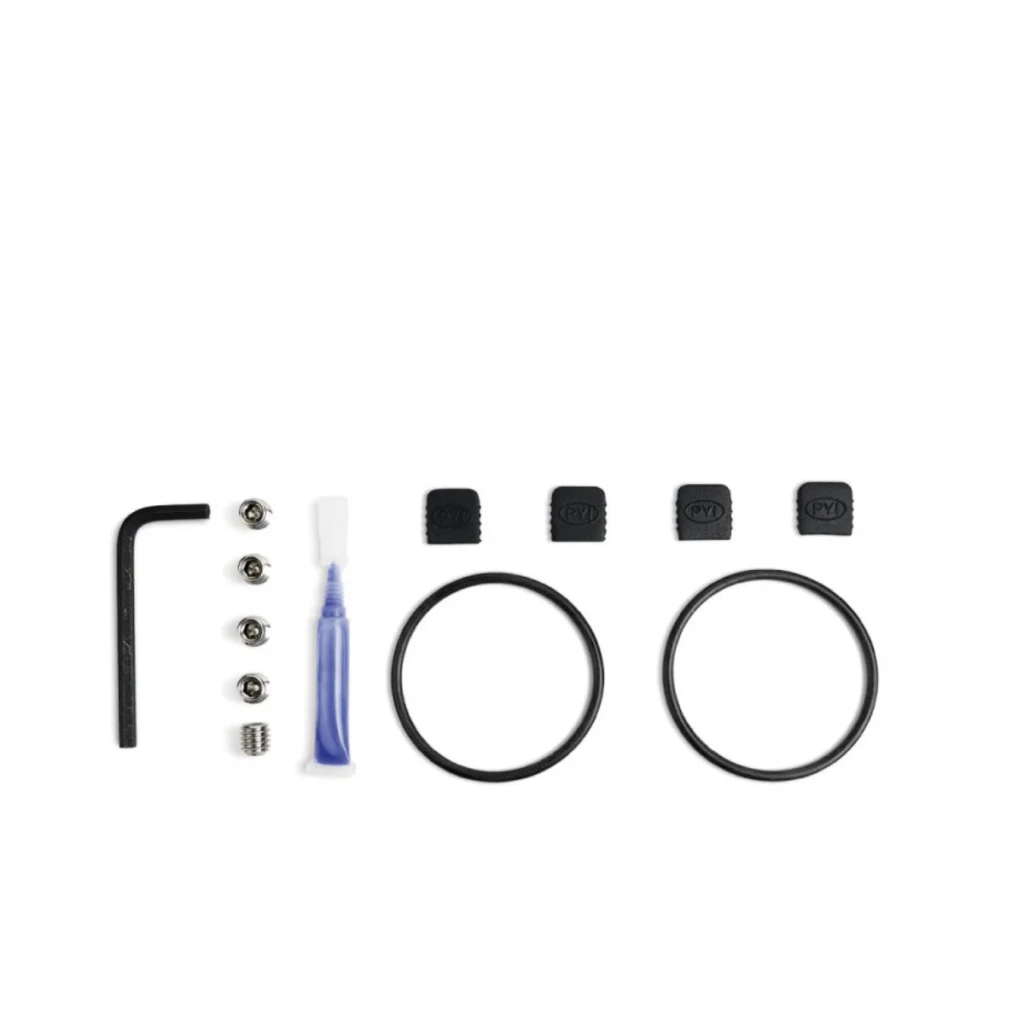

Dynamic Rotor O-Ring Kit

Rated 3.10 out of 5

PRICE From $4.75 to $6.25 USD FEATURES Includes O-ring (2 units), fixing screws (5 units), Allen key, retaining compound, and clamp jackets (4 units)

Quick view

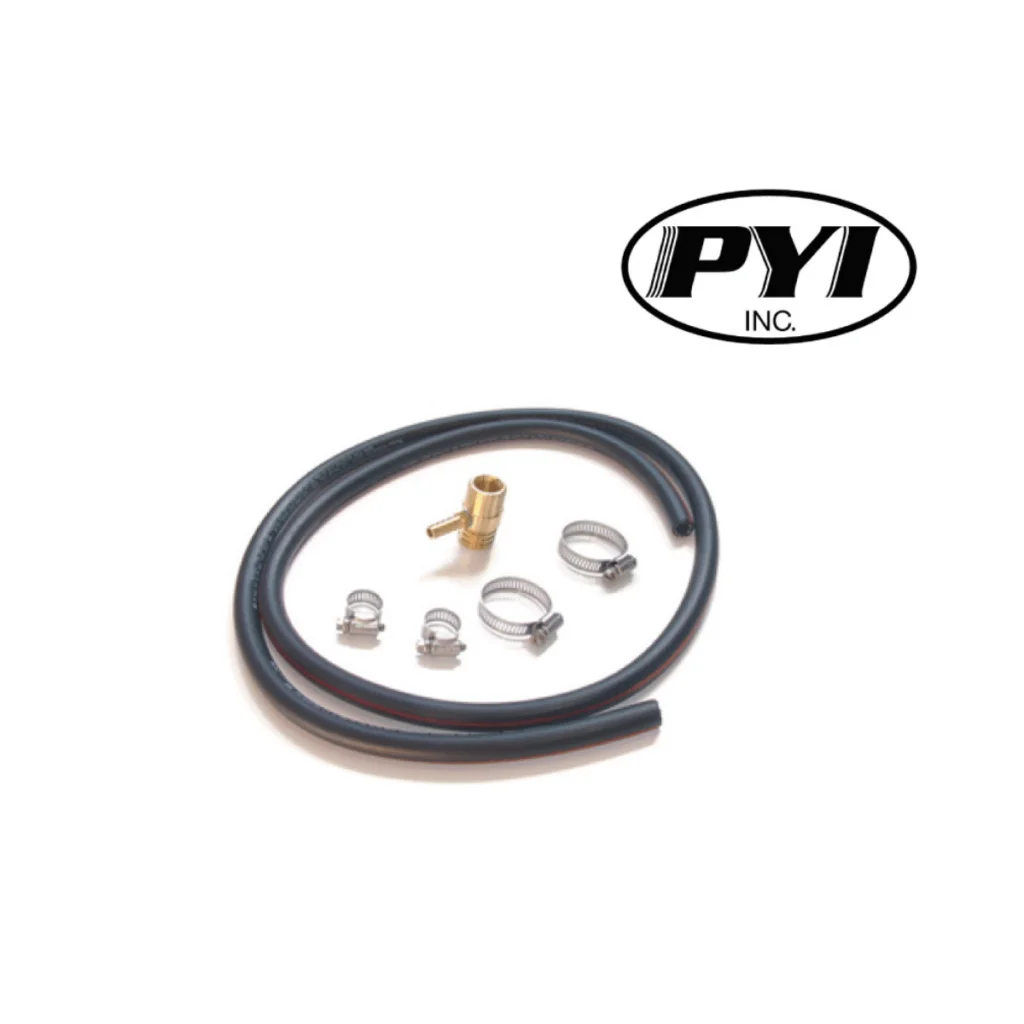

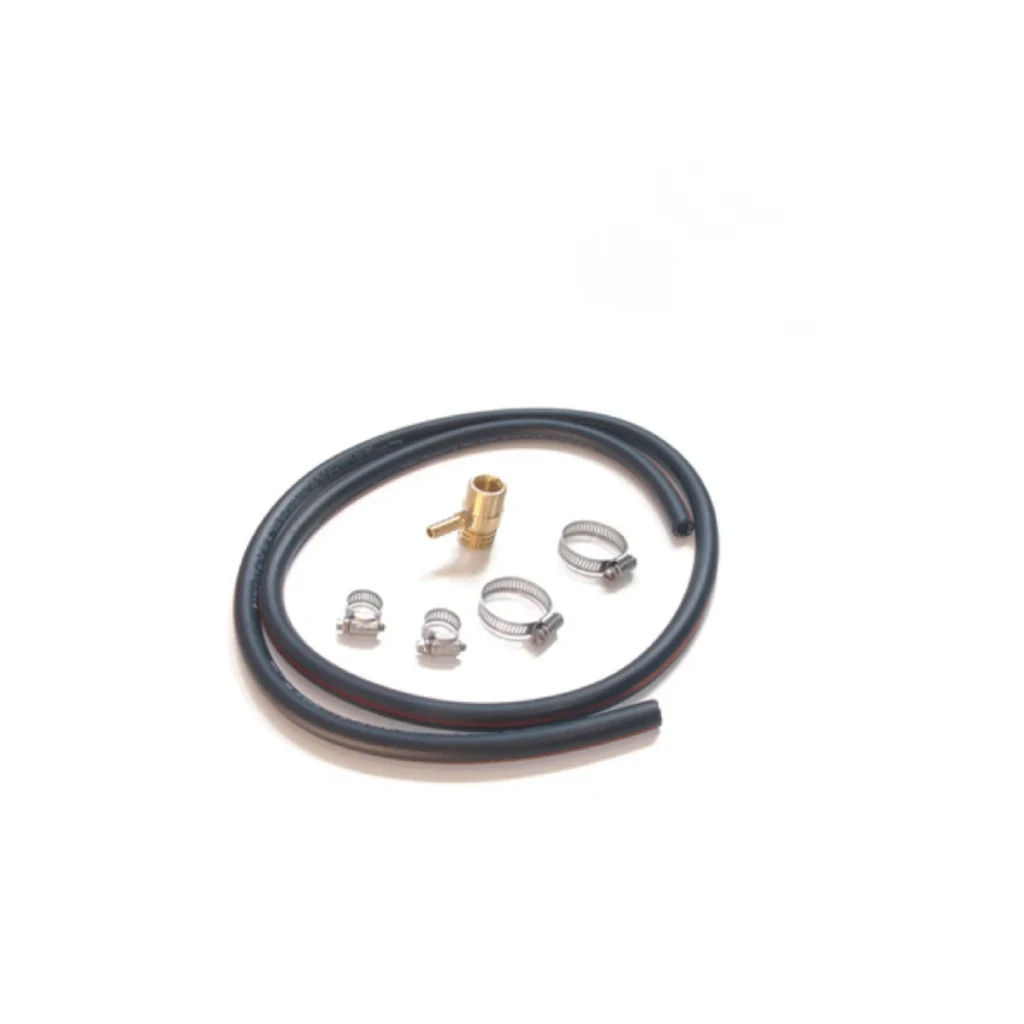

PRICE From $51 to $56 USD. Specific dimensions, references, and prices according to the table. FEATURES: PYI offers Kits-T to help facilitate the installation of the PSS mechanical seal. These Kits-T allow the installer to derive a T from the sea water discharge line and supply water through a hose connector to the PSS mechanical seal.

Quick view

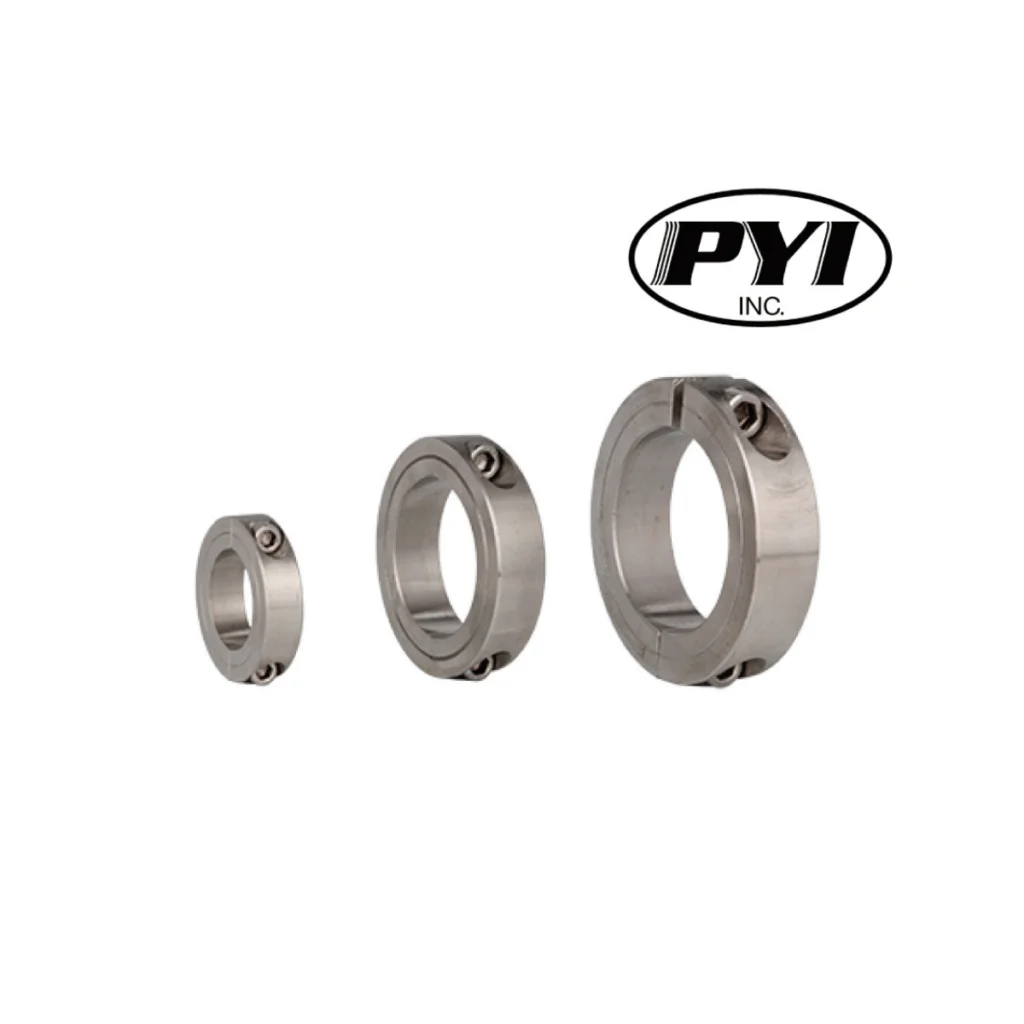

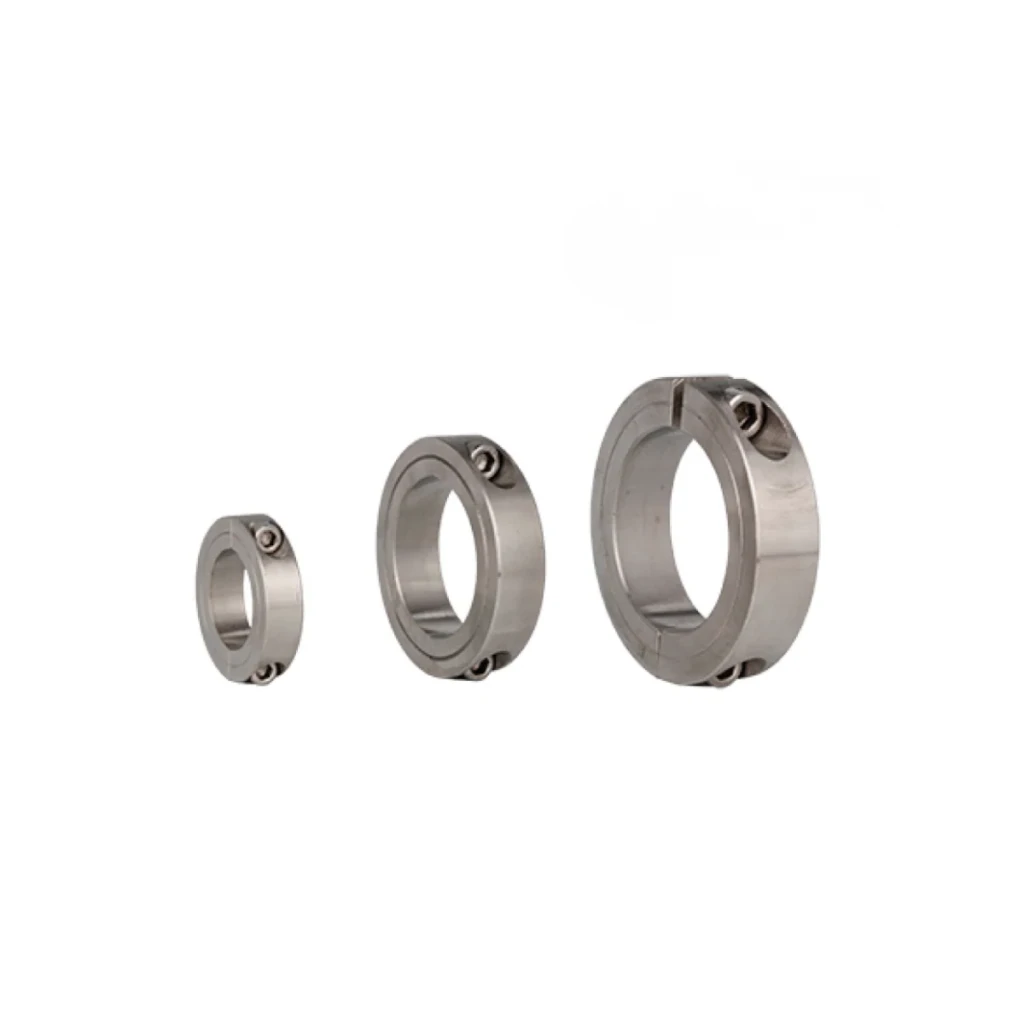

Retention collars for shafts

Rated 2.33 out of 5

PRICE From $20 to $220 USD. FEATURES The Shaft Retention Collar (SRC) is designed to protect propeller shafts and rudders. It helps keep the shaft and rudder inside the boat in case of a coupling failure. Thanks to its simple design, the SRC can be easily installed with the shaft or rudder in place. Available to fit shafts from 1" to 3" or 25 to 80mm.

Quick view

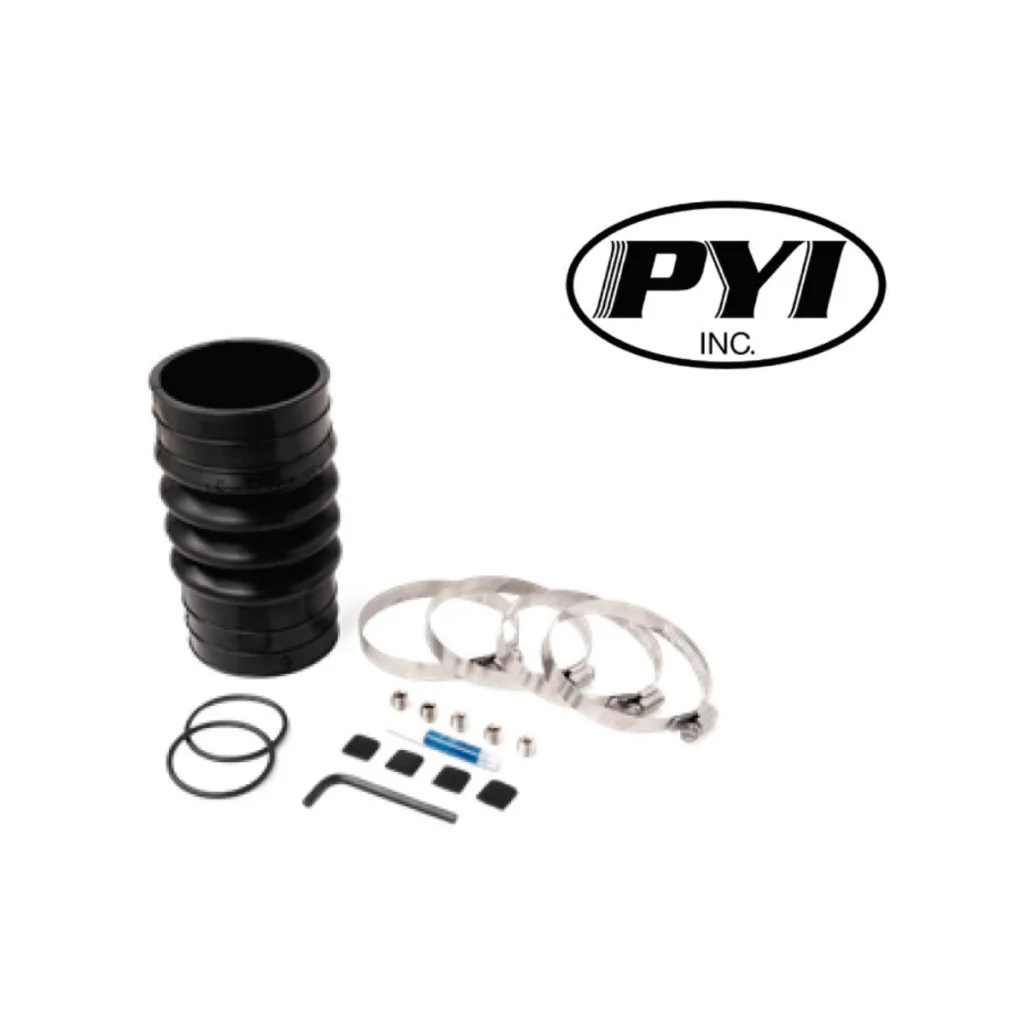

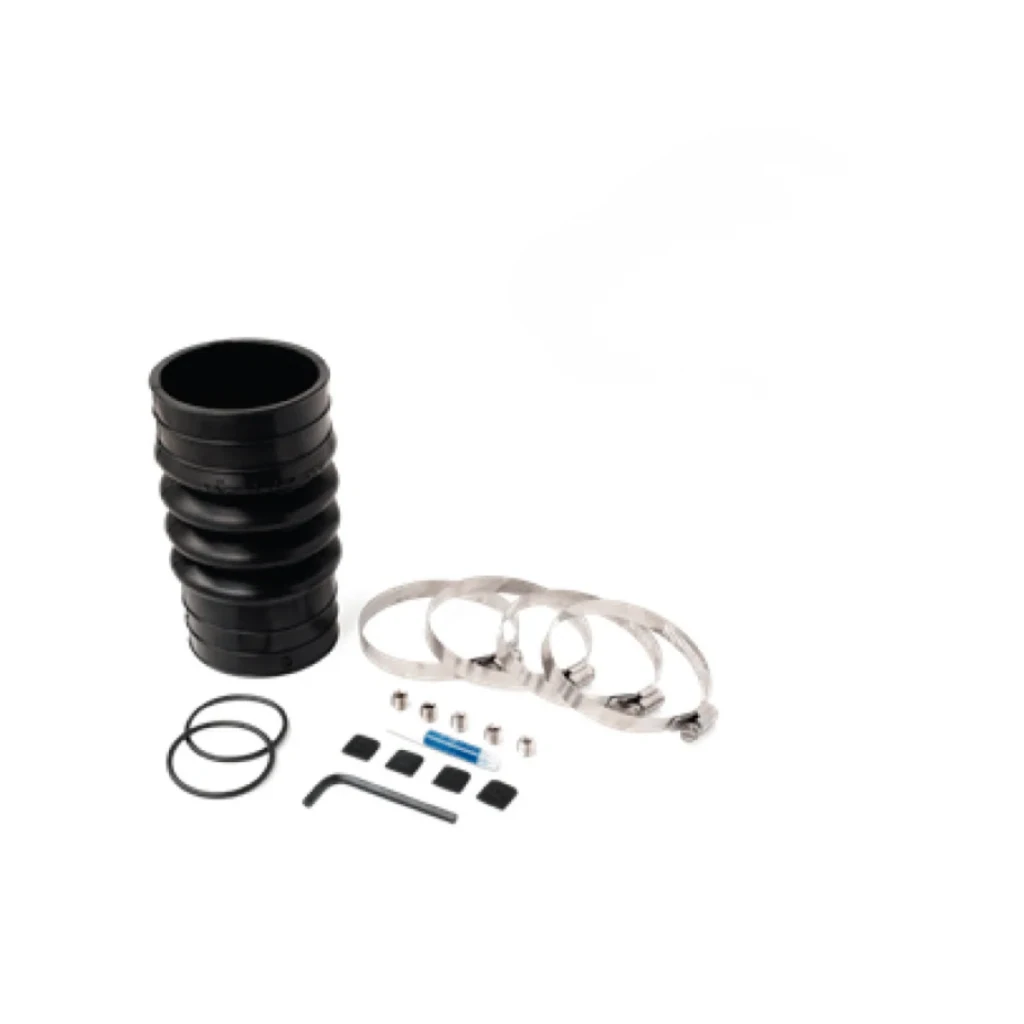

Maintenance kit

Rated 1.71 out of 5

PRICE From $92 to $1160 USD FEATURES To ensure the longevity and proper functioning of the PSS seal, PYI supplies PSS service kits to meet the requirements of the preventive maintenance plan. As with any rubber/silicone hose below the waterline, PSS bellows should be inspected periodically for signs of wear, age or chemical deterioration. PYI recommends replacement of the bellows once every 6 years (For Type A seals) and 8-10 years (For Type B and PRO seals). During bellows replacement it is also recommended that the O-rings and set screws on the stainless steel rotor be replaced, as well as the clamps. PYI includes all necessary components and parts in its PSS maintenance kits.

Quick view

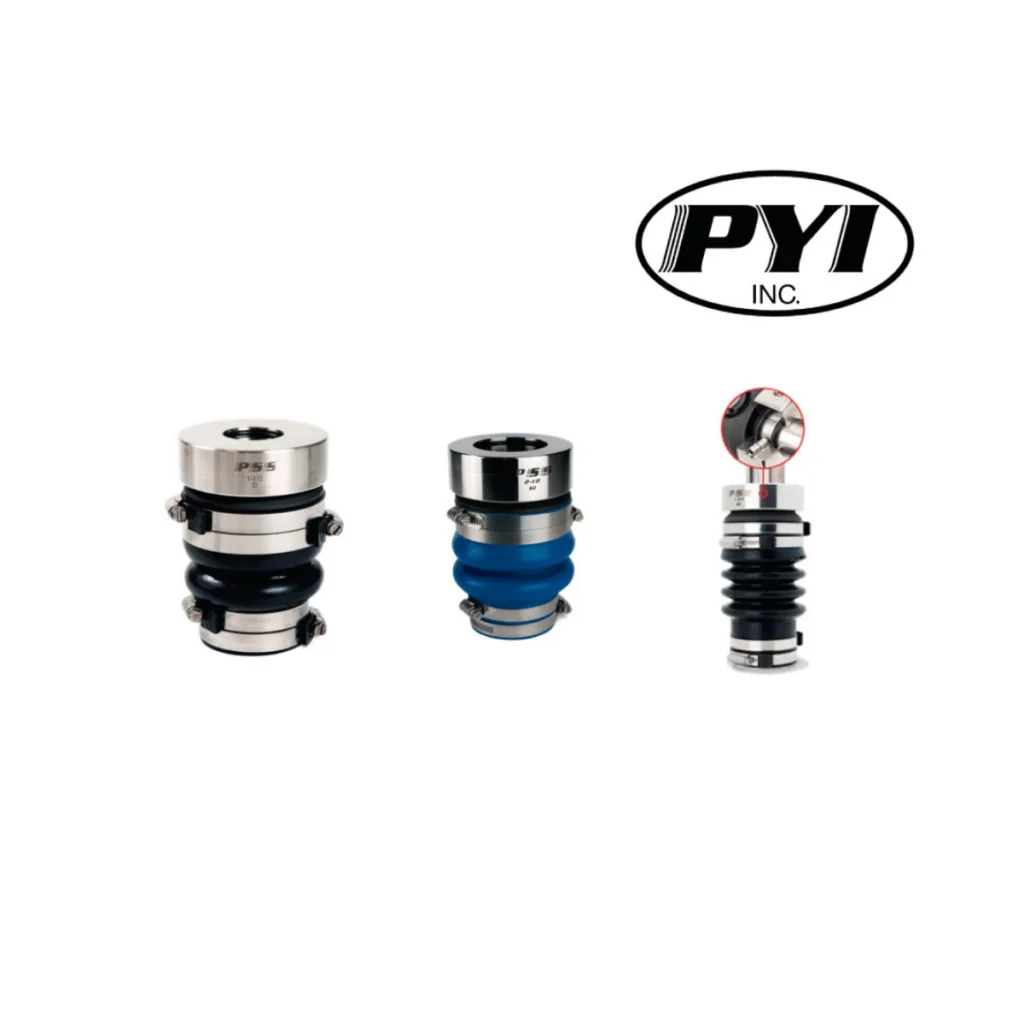

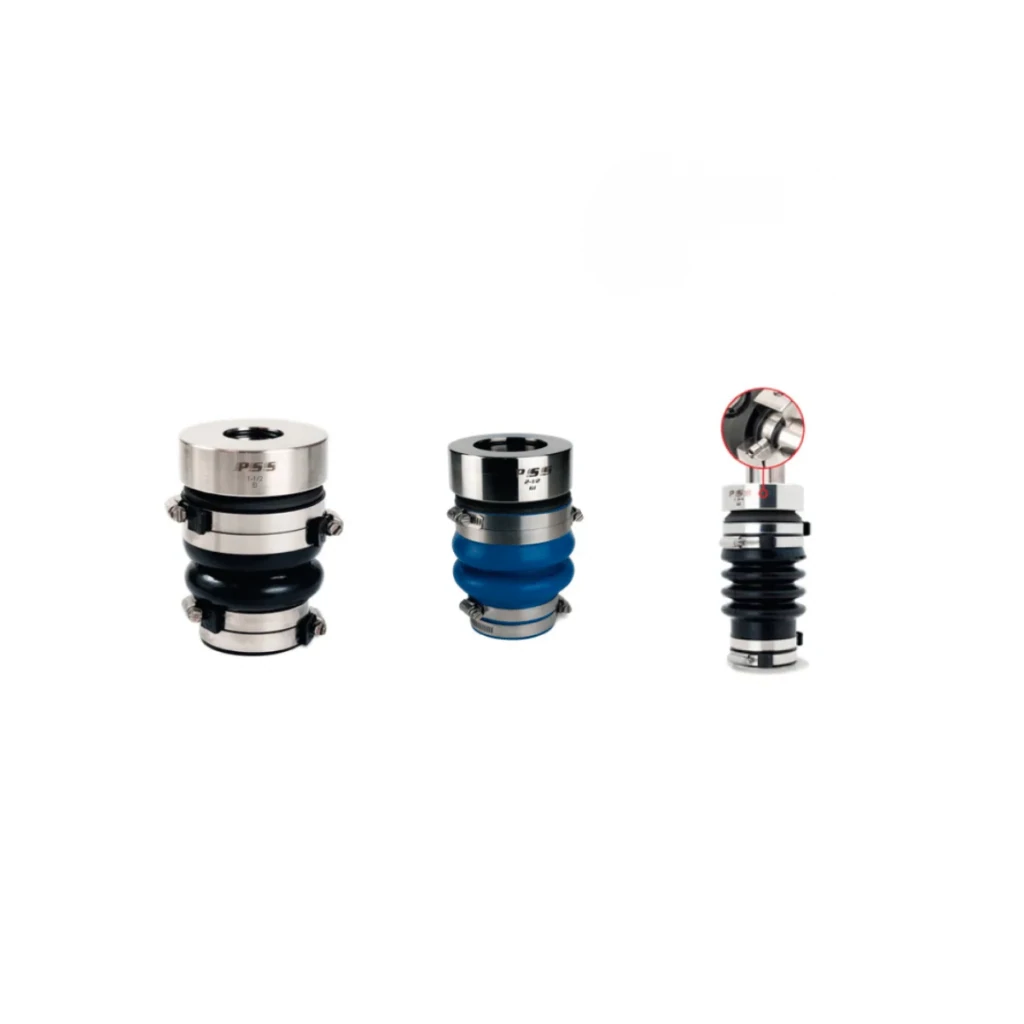

Rudder seal

Rated 3.92 out of 5

PRICE From $300 to $605 USD FEATURES For commercial and recreational vessels

Quick view

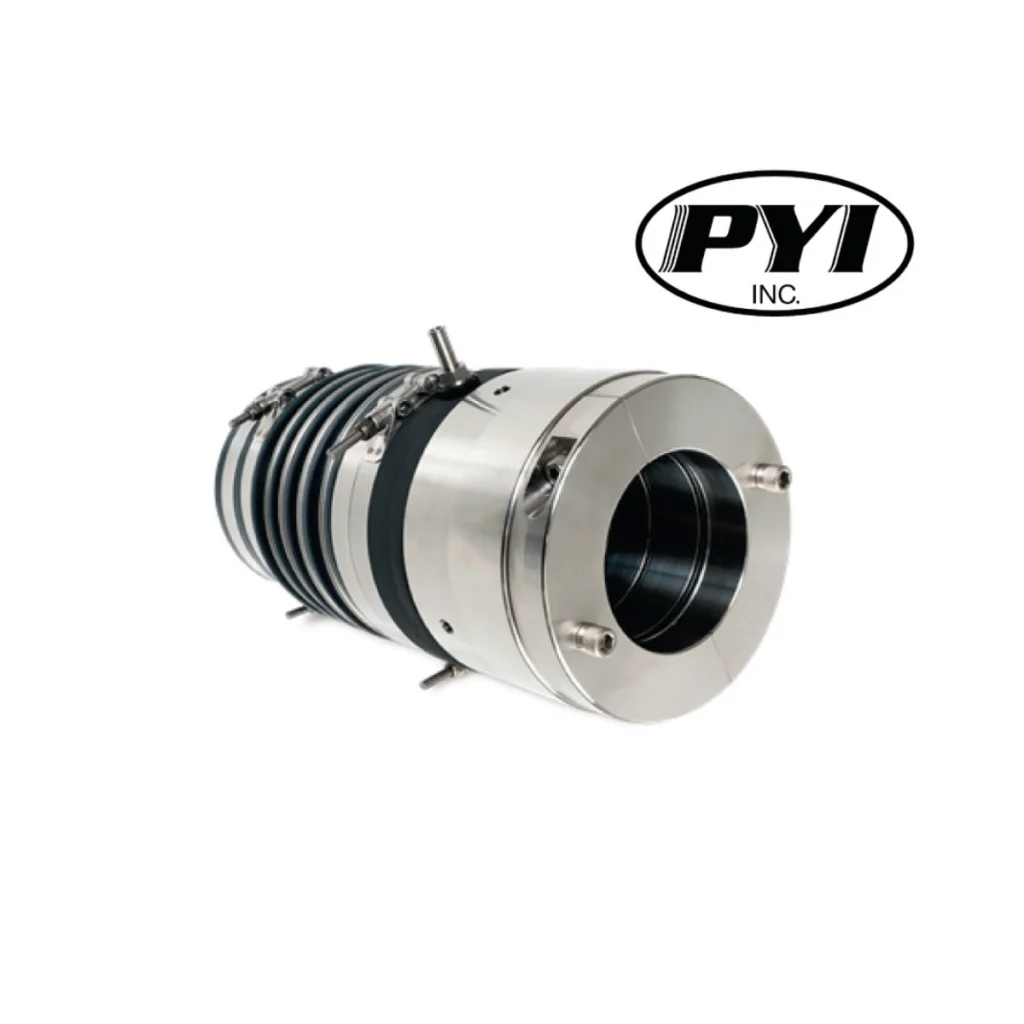

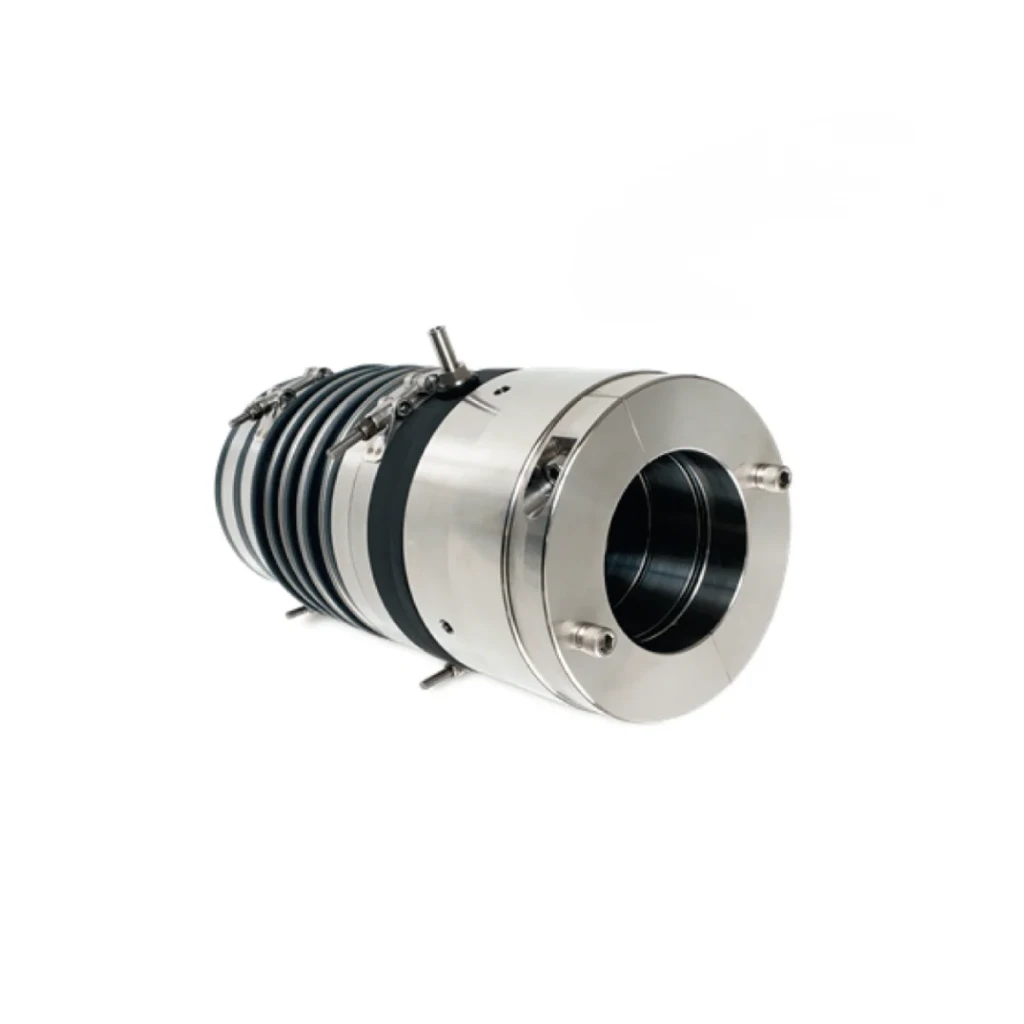

PSS type B

Rated 2.81 out of 5

PRICE FROM $ 4600 TO $ 6650 USD CHARACTERISTICS FOR LARGE COMMERCIAL VESSELS, WITH SHAFTS FROM 4" (100 MM) TO 6" (150 MM) DIAMETER. COMMERCIALLY PROVEN FOR OVER 20 YEARS. THIS SEAL IS THE WORKHORSE OF THE COMMERCIAL MARINE INDUSTRY. STEEL REINFORCEMENT RINGS FOR CORRUGATED RUBBER BELLOWS. STANDARD FOR 4" (100 MM) DIAMETER SHAFTS OR LARGER. TYPE B SEALS USE 316S STAINLESS STEEL TYPE T CLAMPS WITH SCREW. Download file

Quick view

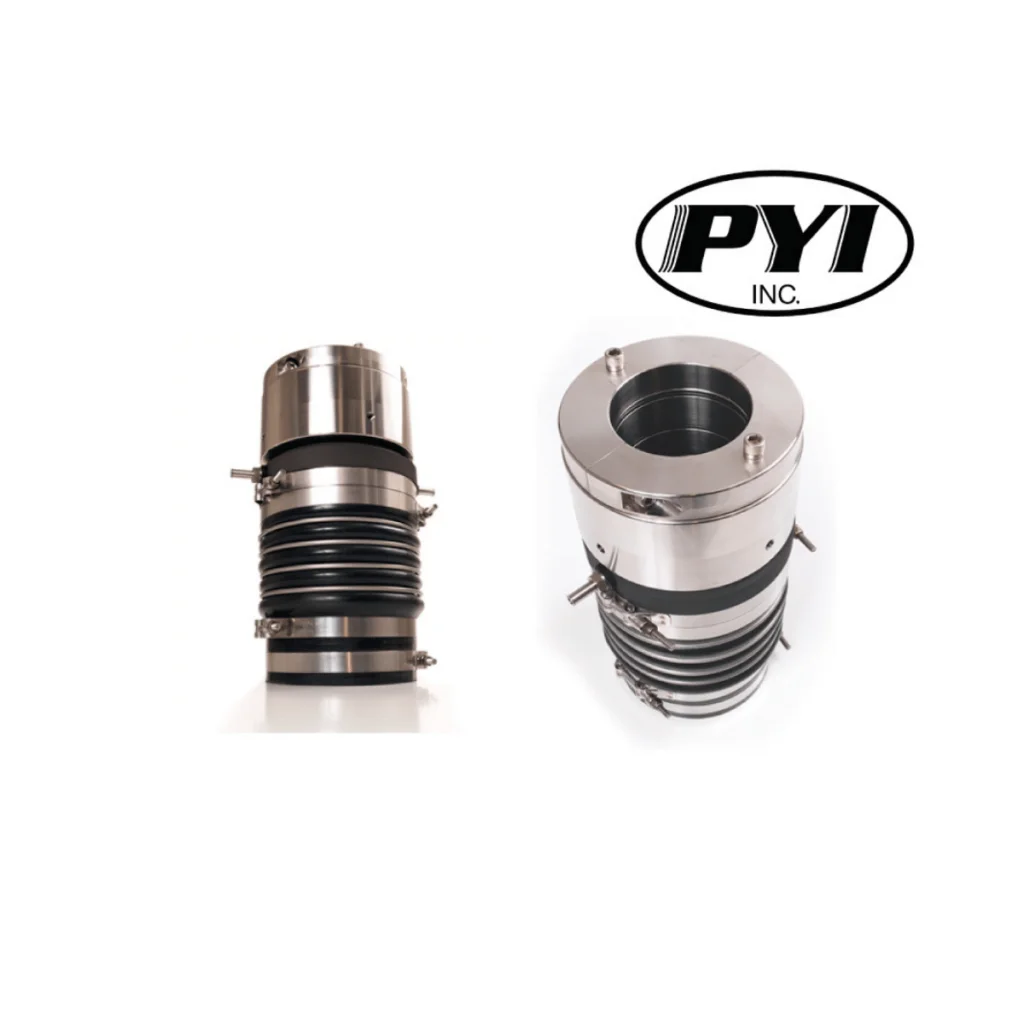

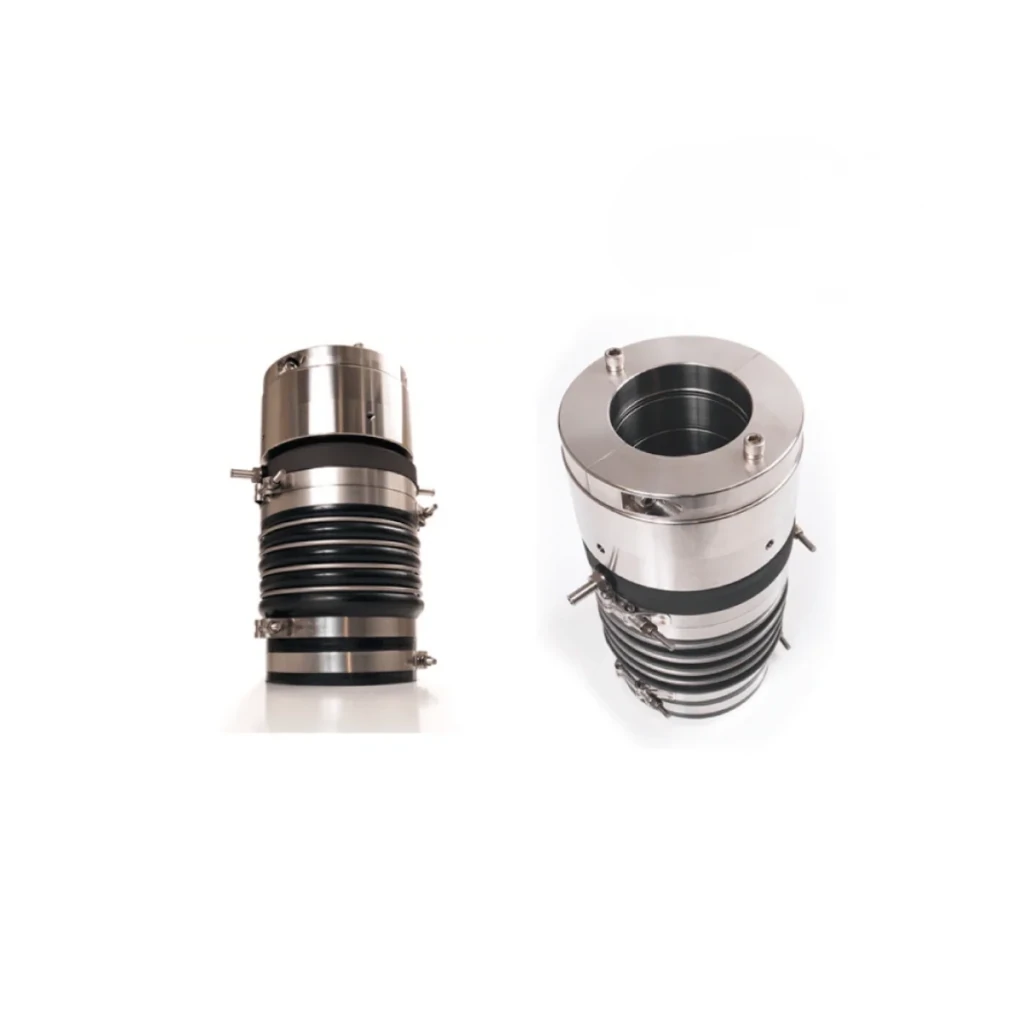

PSS Pro seal

Rated 4.29 out of 5

PRICE From $ 425 to $ 3130 USD CHARACTERISTICS For commercial vessels, with shafts from 1 ¼" (32 mm) to 3- 3/4" (96 mm) diameter. Manufactured with the concept of application in workboats. Steel reinforcement rings for corrugated rubber bellows. Standard for 2 ¼" (60 mm) diameter shafts or larger. Pro seals use 316s stainless steel clamps with rolled ends and non-perforated bands.

Quick view

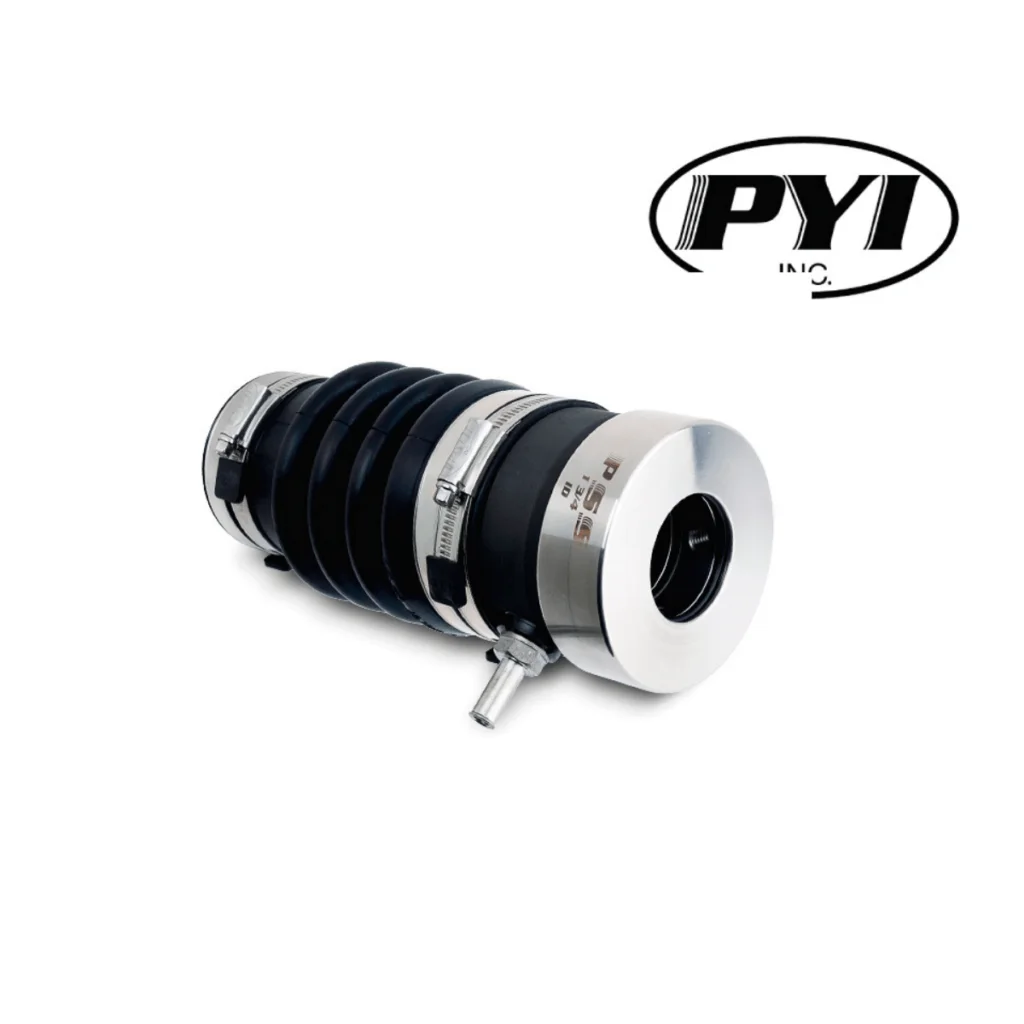

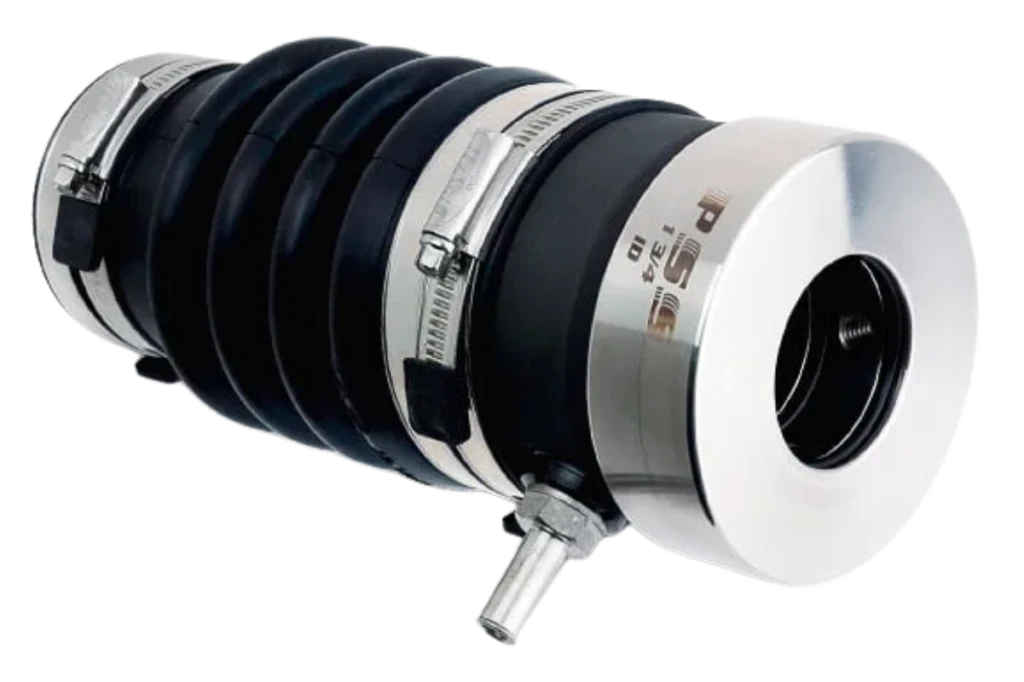

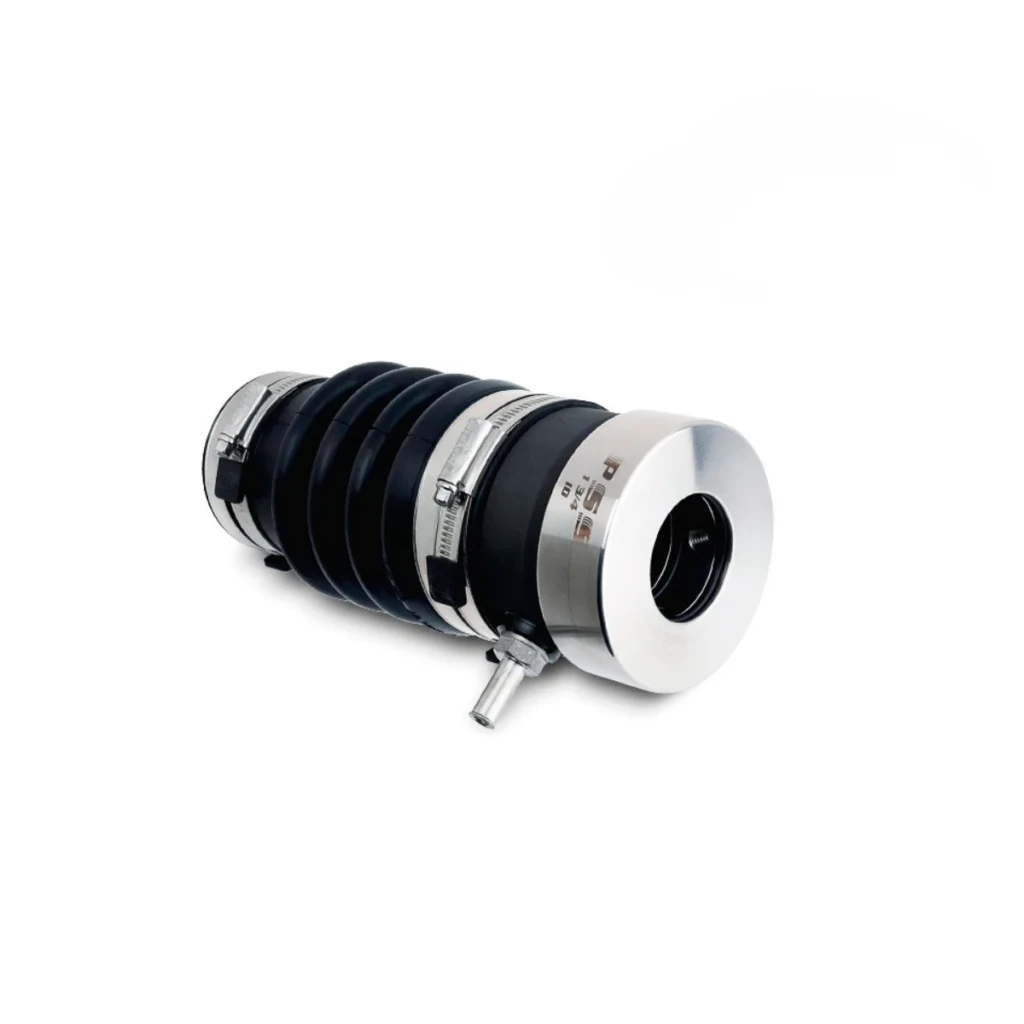

PSS Type A – Mechanical shaft seals

Rated 2.57 out of 5

PRICE From $ 300 to $ 2650 USD FEATURES This packing-free mechanical seal is a flat face seal that creates a mechanical seal between a dynamic stainless steel rotor and a stationary carbon stator. The carbon stator is connected to a corrugated rubber bellows and the backside of the bellows is connected to the shaft's horn tube by metal clamps. During installation, the stainless steel rotor is used to compress the corrugated rubber bellows. Once compressed, the rotor is secured to the shaft. Compression of the bellows allows the seal faces to maintain constant contact, while compensating for axial movement fore and aft of the shaft caused by the thrust of the propeller on the motor's anti-vibration mounts. The inner diameter of the carbon stator is slightly enlarged in reference to the outer diameter of the shaft, allowing it to "float" around the shaft and compensate for misalignment and vibration of the installation. The stainless steel rotor is sealed to the shaft with nitrile rings. These rings rotate with the shaft and rotor suppressing wear during operation. This static ring seal allows PSS mechanical seals to be installed on shafts that already have a certain degree of wear or pitting, unlike lip seals that require an absolutely imperfection-free surface for installation and optimum operation. This type of carbon stator is not as sensitive to cooling water flow interruption or operation in dirty water compared to other mechanical seal options on the market.
